View CAD and 3D engineering files directly in SharePoint. DWG, DXF, STEP, STL, OBJ, and 15 more formats. No desktop software needed. Files never leave your organization.
Viewing CAD files stored in SharePoint is painful. SharePoint's built-in DWG preview frequently fails, and most engineering formats like STEP and IGES have no preview at all. So your team downloads files, installs desktop viewers, and passes files around on USB drives or email. For one file, it's annoying. For a team managing hundreds of drawings, it's a real bottleneck.

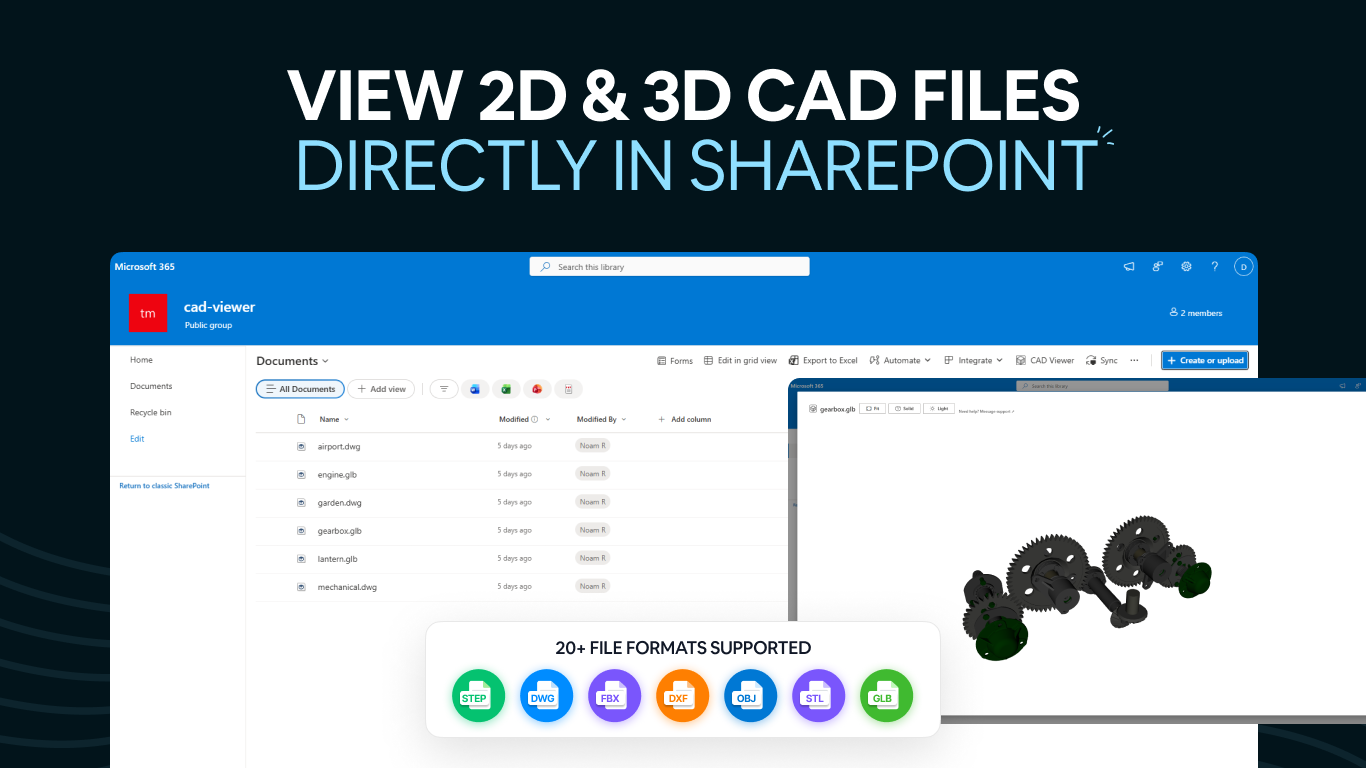

CAD Viewer for SharePoint eliminates all of that. Select a file and click View CAD. The drawing or 3D model opens right in your browser, inside SharePoint. Pan, zoom, orbit, toggle layers, switch between wireframe and solid views. All without installing anything or leaving SharePoint.
Select a CAD or 3D file and the viewer opens it directly in your browser. All rendering happens on your device — files are never sent to an external server.
| Format | Description |
|---|---|
| DWG | AutoCAD drawing — the most common 2D CAD format |
| DXF | AutoCAD interchange format — widely supported across CAD tools |
| Format | Description |
|---|---|
| STEP / STP | Mechanical engineering standard — parts and assemblies |
| IGES / IGS | Older interchange format for 3D models |
| BREP | Boundary representation geometry |
| Format | Description |
|---|---|
| STL | 3D printing and prototyping |
| OBJ | General-purpose 3D model format |
| FBX | Autodesk interchange format for 3D assets |
| glTF / GLB | Modern 3D format — compact and fast to load |
| 3MF | 3D Manufacturing Format — optimized for 3D printing |
| 3DS | 3D Studio legacy format |
| PLY | Point cloud and mesh data |
| DAE | COLLADA — cross-platform 3D exchange |
| OFF | Object File Format — simple mesh geometry |
| WRL | VRML — virtual reality modeling |
| 3DM | Rhino 3D models |
| AMF | Additive Manufacturing Format |
View DWG and DXF drawings with pan, zoom, and a layer panel that lets you toggle individual layers on and off. Focus on exactly the parts of the drawing you need.
Rotate, pan, and zoom 3D models with intuitive orbit controls. Switch between solid and wireframe rendering. Toggle between light and dark backgrounds.
View AutoCAD drawings and 3D engineering files without installing AutoCAD, SolidWorks, or any other desktop software. Everything runs in your browser.
DWG, DXF, STEP, IGES, BREP, STL, OBJ, FBX, glTF, GLB, 3MF, 3DS, PLY, DAE, OFF, WRL, 3DM, and AMF. One viewer for all your engineering files.
All rendering happens in your browser using WebAssembly. Files are downloaded from SharePoint, rendered locally, and never sent to an external server.
Works directly in your SharePoint document library. Select a file, click View CAD, and the viewer opens in a full-screen dialog. No new tabs, no external tools.
Your files stay private. All rendering happens on your device using WebAssembly. Files are never sent to an external server and nothing leaves your organization.
No third-party servers. The add-in reads files from SharePoint, renders them locally in your browser, and displays them on a canvas. No middleman.
SharePoint permissions respected. Users can only view files they already have permission to see. The add-in does not bypass any access controls.
Click on a supported CAD or 3D file in your SharePoint document library. The "View CAD" command appears in the toolbar.
Click the command in the toolbar. The file is downloaded to your browser and the appropriate viewer loads automatically based on the file type.
Pan, zoom, and orbit to inspect the file. For 2D drawings, toggle layers on and off. For 3D models, switch between solid and wireframe views.
Engineering teams that store DWG and STEP files in SharePoint. View drawings and 3D models without installing desktop CAD software on every machine.
Architecture and construction firms collaborating on building plans. View DWG and DXF files directly in SharePoint without converting them or downloading to a local machine.
Manufacturing teams sharing 3D models with procurement, quality, and production. Let non-engineers view STEP, STL, and OBJ files without needing a CAD license.
IT administrators looking to reduce desktop software sprawl. Give users a way to view engineering files in the browser instead of installing AutoCAD viewers on every workstation.
SharePoint's built-in DWG preview is powered by Autodesk and frequently fails with "no preview available" errors. With CAD Viewer for SharePoint installed, select a DWG file, click View CAD in the command bar, and the drawing opens directly in your browser with pan, zoom, and layer controls.
SharePoint has no built-in preview for STEP files. With CAD Viewer for SharePoint installed, select a STEP or STP file, click View CAD, and the 3D model loads with orbit, pan, and zoom controls. No desktop software needed.
2D CAD: DWG, DXF. 3D CAD: STEP, STP, IGES, IGS, BREP. 3D Mesh: STL, OBJ, FBX, glTF, GLB, 3MF, 3DS, PLY, DAE, OFF, WRL, 3DM, AMF. That's 20 formats in total.
Everything is rendered on your device using WebAssembly. Files are downloaded from SharePoint, processed locally in your browser, and displayed on a canvas. Nothing is sent to any external server.
No. CAD Viewer for SharePoint renders files in the browser using open-source libraries. You don't need AutoCAD, SolidWorks, or any other desktop CAD software.
No. CAD Viewer is a read-only viewer. It lets you view, inspect, and explore CAD files. Editing, annotating, and measurement tools are not included in the current version.
All plans come with a 60-day full refund guarantee · Cancel anytime from your dashboard, no questions asked. If you're not satisfied, contact us for a full refund.
Install CAD Viewer for SharePoint and start viewing CAD and 3D files directly in your document library.
